GHOSTILE THE HIDDEN MODULAR RADIATOR
Ghostile is a totally hidden radiator that redefines the classical paradigms of decorative radiators and ensures freedom of use of the space: a new archetype that radicalizes the concept of design … disappearing.
The high-quality materials, all recyclable, of which Ghostile is made ensure its use at high temperature like any traditional radiator.
Thanks to the high performance and the large radiant surface it is suitable also for low temperature systems.

HOW IS IT POWERED?
Ghostile runs with water
As a traditional radiator oe towel warmer it is connected to
the main heating system whether it runs at high or low
temperature.
It can replace completely ot partially the radiators taking the water from one of them.
HOW IS IT INSTALLED?
The modules (60×60 cm or 60×120 cm) are hydraulically connected one into the other to form a radiator placed under the wall.
The modules can be installed directly on the existing wall or spaced from the wall itself to
create a micro-chamber improving the insulation and rehabilitate, if needed, the wall itself.
After installation, radiant modules can be cladded with any material of finishing like tiles, plasterboard (fixed like any a ceramic tile) or levelled after primer base application and insertion of fiberglass mesh for levelling.

THERMAL COMFORT
The feeling of well-being in an environment mainly depends
from superficial temperature of the walls as well as the
ambient temperature.
Ghostile creates large vertical warm surfaces ensuring, even
at lower temperatures, a feeling of comfort that traditional
systems cannot offer. This allows a reduction in the operating
costs of the heating system.

DIMENSIONS: 591 X 1875 mm
THERMAL POWER: SMOOTH FINISH FOR INTERIORS
– Δt 26° = 341 WATT
– Δt 50° = 658 WATT
THERMAL POWER: GRES / CERAMIC FINISH
– Δt 26° = 374 WATT
– Δt 50° = 722 WATT

DIMENSIONS: 591 X 2466 mm
THERMAL POWER: SMOOTH FINISH FOR INTERIORS
– Δt 26° = 454 WATT
– Δt 50° = 878 WATT
THERMAL POWER: GRES / CERAMIC FINISH
– Δt 26° = 499 WATT
– Δt 50° = 963 WATT

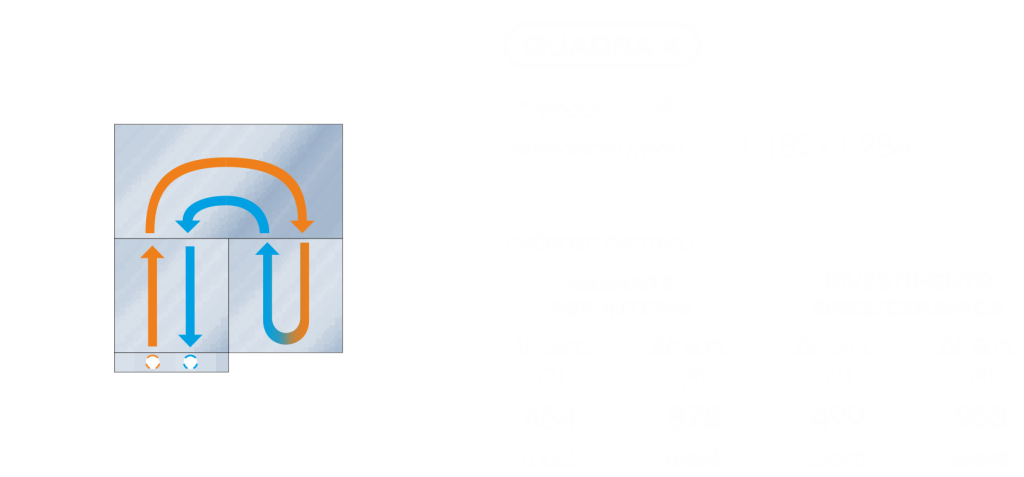

DIMENSIONS: 1182 X 1284 mm
THERMAL POWER: SMOOTH FINISH FOR INTERIORS
– Δt 26° = 454 WATT
– Δt 50° = 878 WATT
THERMAL POWER: GRES / CERAMIC FINISH
– Δt 26° = 499 WATT
– Δt 50° = 963 WATT

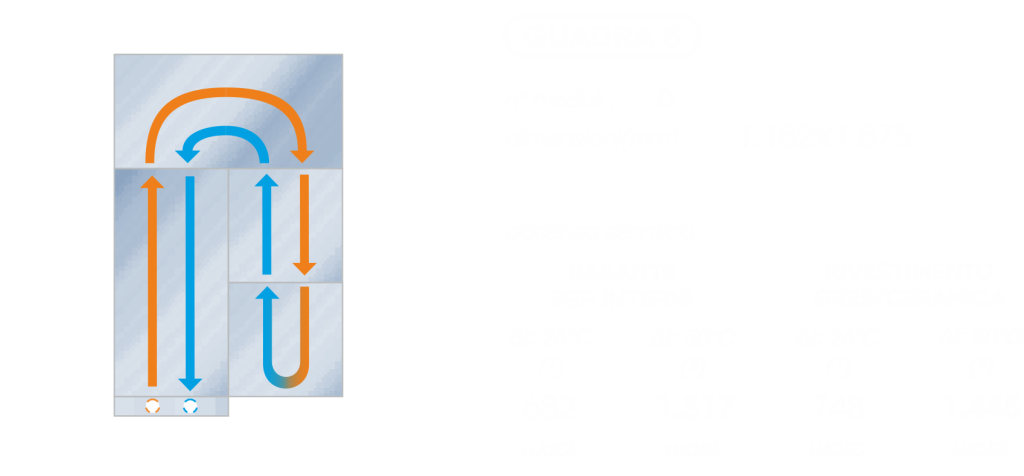

DIMENSIONS: 1182 X 1875 mm
THERMAL POWER: SMOOTH FINISH FOR INTERIORS
– Δt 26° = 682 WATT
– Δt 50° = 1317 WATT
THERMAL POWER: GRES / CERAMIC FINISH
– Δt 26° = 748 WATT
– Δt 50° = 1445 WATT

DIMENSIONS: 1182 X 2466 mm
THERMAL POWER: SMOOTH FINISH FOR INTERIORS
– Δt 26° = 909 WATT
– Δt 50° = 1756 WATT
THERMAL POWER: GRES / CERAMIC FINISH
– Δt 26° = 998 WATT
– Δt 50° = 1927 WATT

DIMENSIONS: 1773 X 2466 mm
THERMAL POWER: SMOOTH FINISH FOR INTERIORS
– Δt 26° = 1363 WATT
– Δt 50° = 2633 WATT
THERMAL POWER: GRES / CERAMIC FINISH
– Δt 26° = 1495 WATT
– Δt 50° = 2890 WATT

DIMENSIONS: 2364 X 2466 mm
THERMAL POWER: SMOOTH FINISH FOR INTERIORS
– Δt 26° = 1818 WATT
– Δt 50° = 3511 WATT
THERMAL POWER: GRES / CERAMIC FINISH
– Δt 26° = 1995 WATT
– Δt 50° = 3853 WATT

GHOSTILE THE HIDDEN MODULAR RADIATOR

Ghostile is a totally concealed radiator that revolutionizes the
classic paradigms of radiators and guarantees freedom in
use of the spaces of the house: a new archetype that
takes the concept of design to extremes … disappearing
The high quality of the materials, all recyclable, with which Ghostile is
built allow it to be used at high temperatures
like any traditional radiator
Discover all the features and advantages of the system.
Discover all the features and advantages of the system.
HOW IS IT INSTALLED?
The modules (60×60 cm or 60×120 cm) are hydraulically connected one into the other to form a radiator placed under the wall.
The modules can be installed directly on the existing wall or spaced from the wall itself to create a micro-chamber improving the insulation and rehabilitate, if needed, the wall itself.
After installation, radiant modules can be cladded with any material of finishing like tiles, plasterboard (fixed like any a ceramic tile) or levelled after primer base application and insertion of fiberglass mesh for levelling.
After installation, radiant modules can be cladded with any material of finishing like tiles, plasterboard (fixed like any a ceramic tile) or levelled after primer base application and insertion of fiberglass mesh for levelling.
HOW IS IT POWERED?

Ghostile runs on water.
Like a radiator or a traditional towel warmer, it is connected to the main heating system, whether at high or low temperature.
It can completely or partially replace the radiators by deriving the water from one of them
THERMAL COMFORT

The feeling of well-being in an environment depends in an important way on the surface temperatures of the walls as well as on the ambient temperature.
Ghostile creates large vertical warm surfaces ensuring, even at lower temperatures, a feeling of comfort that traditional systems cannot offer.
This allows a reduction in the management costs of the heating system

DIMENSIONI: 591 X 1875 mm
POTENZA TERMICA: FINITURA RASANTE PER INTERNI
– Δt 26° = 341 WATT
– Δt 50° = 658 WATT
POTENZA TERMICA: FINITURA GRES/CERAMICA
– Δt 26° = 374 WATT
– Δt 50° = 722 WATT

DIMENSIONI: 591 X 2466 mm
POTENZA TERMICA: FINITURA RASANTE PER INTERNI
– Δt 26° = 454 WATT
– Δt 50° = 878 WATT
POTENZA TERMICA: FINITURA GRES/CERAMICA
– Δt 26° = 499 WATT
– Δt 50° = 963 WATT

DIMENSIONI:
1182 X 1284 mm
POTENZA TERMICA: FINITURA RASANTE PER INTERNI
– Δt 26° = 454 WATT
– Δt 50° = 878 WATT
POTENZA TERMICA: FINITURA GRES/CERAMICA
– Δt 26° = 499 WATT
– Δt 50° = 963 WATT

DIMENSIONI:
1182 X 1875 mm
POTENZA TERMICA: FINITURA RASANTE PER INTERNI
– Δt 26° = 682 WATT
– Δt 50° = 1317 WATT
POTENZA TERMICA: FINITURA GRES/CERAMICA
– Δt 26° = 748 WATT
– Δt 50° = 1445 WATT

DIMENSIONI:
1182 X 2466 mm
POTENZA TERMICA: FINITURA RASANTE PER INTERNI
– Δt 26° = 909 WATT
– Δt 50° = 1756 WATT
POTENZA TERMICA: FINITURA GRES/CERAMICA
– Δt 26° = 998 WATT
– Δt 50° = 1927 WATT

DIMENSIONI:
1773 X 2466 mm
POTENZA TERMICA: FINITURA RASANTE PER INTERNI
– Δt 26° = 1363 WATT
– Δt 50° = 2633 WATT
POTENZA TERMICA: FINITURA GRES/CERAMICA
– Δt 26° = 1495 WATT
– Δt 50° = 2890 WATT
